Stroker build

[andy10v]

Getting close. Thanks for all the pictures, always interesting.

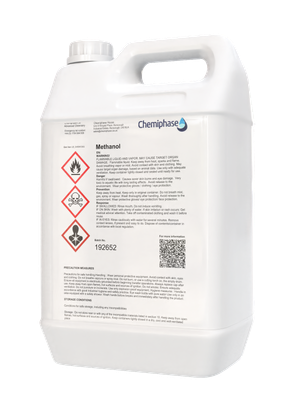

Methanol

http://www.chemiphase.co.uk/methanol...-virgin-grade/

[S2central.net]

I am drawn to the EFR6758 I must say for 2.2T application... cannot see an option for an external WG though - obviously that is easier to package but I like the flexibility that an external WG provides.

[diesel des]

It's a external wastgate efr6758 that I'm using with v band in and out. I made an adapter to go from the t3 flanged manifold to the v band turbine inlet. It would be easy enough to make a kkk to v band adapter too. Easier even.

It's the 0.8 ar housing. The maps do look good but I like the garret gtx2867r compressor map too. The turbine is better on the efr though with its magic titanium aluminiumide thing wheels.

Sent from my GT-N7105 using Tapatalk

[diesel des]

Update. I got the engine running at the weekend. I had a oil leak at the filter housing to block flange that I had to sort out but other than that all is good. I spent some time tidying water hoses etc and tonight plan on getting the front of the car back together. I need to do a bit of work on getting the intake system and air box fitted.


Sent from my GT-N7105 using Tapatalk

[diesel des]

Quick update. It drives. Gearbox good. Engine good. Bit between not so much. I have clutch slip at 2 bar boost. The clutch is real light. Like a yaris or something. I need a stiffer pressure plate.

Also I have vems trigger issues which stop me running over 4500rpm. I need to check the gap on the crank sensors.

Some numbers. I connected the boost valve last night. It gets 0.5 bar at 2k rpm, 1 bar at 2.5k rpm and over 2 bar by 2.8k rpm. That causes it to slip the clutch again. So have it wound off to 1.5 bar but it spikes and hunts a bit. Need to dial the pid settings in. But as I plan on 2 bar boost I might not bother.
Will take it a long run today to get a few miles on it. 50 miles now...

Sent from my GT-N7105 using Tapatalk

[diesel des]

Pic. Still some tiding to do too.

Sent from my GT-N7105 using Tapatalk

[AndyP]

Some numbers. I connected the boost valve last night. It gets 0.5 bar at 2k rpm, 1 bar at 2.5k rpm and over 2 bar by 2.8k rpm. That causes it to slip the clutch again. So have it wound off to 1.5 bar but it spikes and hunts a bit. Need to dial the pid settings in. But as I plan on 2 bar boost I might not bother.
Will take it a long run today to get a few miles on it. 50 miles now...

Sent from my GT-N7105 using Tapatalk

That's some impressive spool you've got there!! I bet the mid-range torque is going to be massive once you've fully mapped it.

Have a word with Kit Simmonds, he's found a place in Germany that has the SRE clutch in stock for the 3B flywheel, he's ordered on this week, good price too

[K Simmonds]

That's some impressive spool you've got there!! I bet the mid-range torque is going to be massive once you've fully mapped it.

Have a word with Kit Simmonds, he's found a place in Germany that has the SRE clutch in stock for the 3B flywheel, he's ordered on this week, good price too

I have indeed, give these guys a try, Sparepartstore24.co.uk, they list the two parts seperatly as oppossed to a kit, comes out at around £450 which I think is a little more than what I said yesterday but still not too bad and delivery is free.

Nice meet you yesterday as well Andy

[diesel des]

Thanks guys. Ordered the sre pressure plate from Sparepartstore24.co.uk for less than 250 delivered. Might summons the interest and time to change it next week end if it's here by then.

Have about 250 miles on the car now. I'm using uprated engine mounts which have a swapable rubber part. It came with a 2 compounds and I tried the harder ones first. They are a bit harsh as at low rpm there is a fair bit of vibration in the car. I will change these to the softer ones when I do the clutch.

So I hope to get a chance some night this week to measure the gap between the crank pin sensor and the pin on the flywheel. I will then grind the bracket down to leave a max gap of 1 mm. That should sort my false trigger errors and misfiring above 4.5k rpm. If it doesn't I will beef up the pin when I'm doing the clutch.

But on my drive today I can't say I missed not being able to rev the car as it makes real strong torque. If only the clutch would hold it...



Sent from my GT-N7105 using Tapatalk

[PRY4SNO]

Awesome news!

Would love to see some vids of the speedometer when you get a chance.

[diesel des]

Pm me your email as what your asking for isn't for Web consumption... lol

Sent from my GT-N7105 using Tapatalk

[sailaz]

I'm using uprated engine mounts which have a swapable rubber part. It came with a 2 compounds and I tried the harder ones first.

by who are manufactured those ? maybe link is available or pics ?
and what wastegate you're using ?

[diesel des]

I got them from a guy in the states. I think he hangs out on projectpad forum. I can't find his email address at the moment.

It's a stock wastgate. They are about as reliable as they come and are fine with this turbo size and even bigger.

Cheers des

Sent from my GT-N7105 using Tapatalk

[diesel des]

Engine mount link.

http://TheProjectPad.com/viewtopic.p...4+engine+mount

Sent from my GT-N7105 using Tapatalk

[sailaz]

big Thanks for your replies
